Multibase U20 Car Stacker

Multibase U20

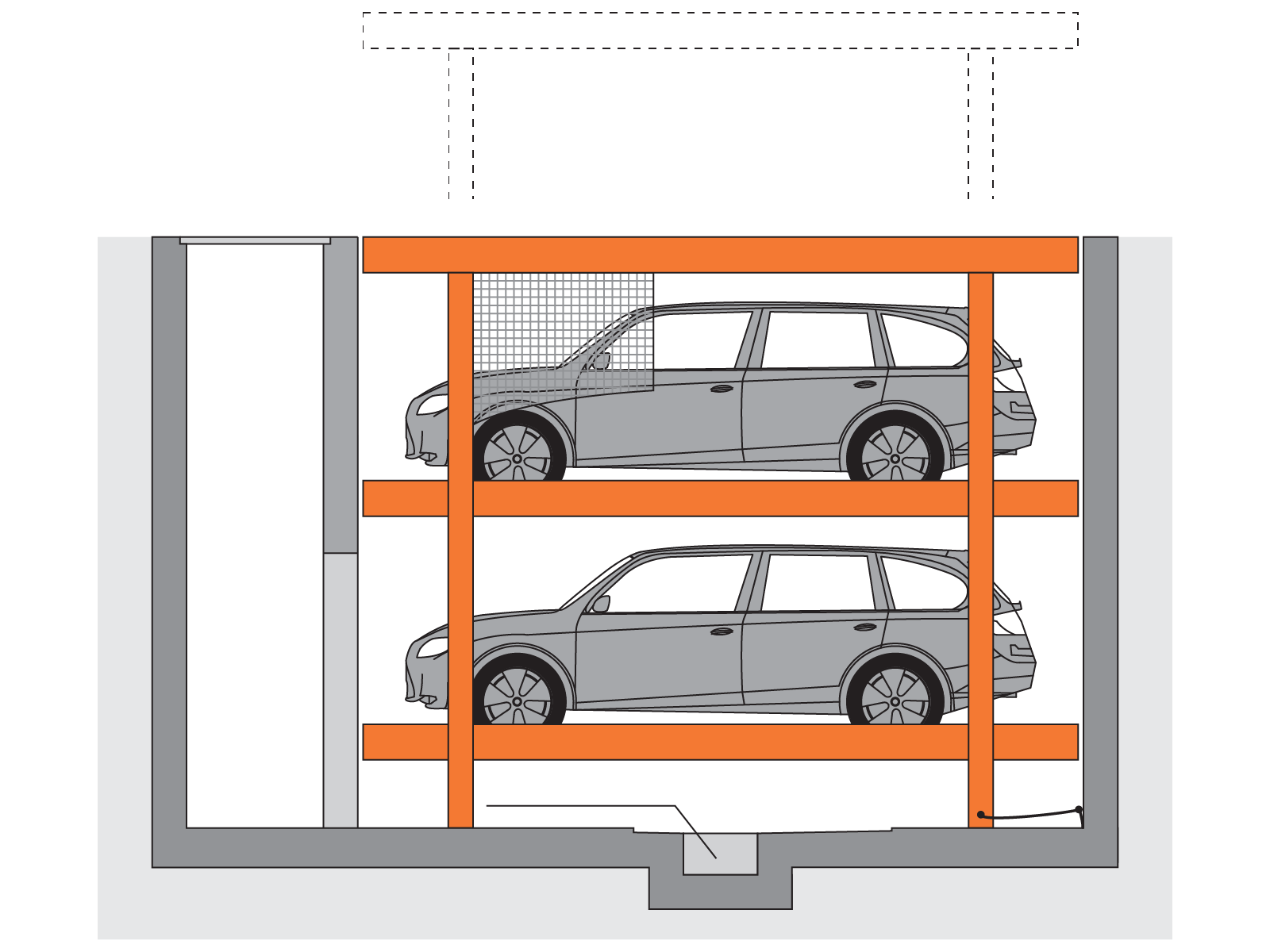

Hide your cars underground with the “Disappearing Effect” of the Underfloor System. This premium system comes in one or two levels underground. The uppermost platform, the top deck, flush finishes when fully lowered, which allows decorative design according to your likings – for an increased value of your property.

When fully lowered, the Multibase U10 or U20, can be drive-through, thus, can be used in narrow courtyards, front gardens, or in front of another one of our systems. Their premium design offers maximum comfort with optimum space utilization.

Project Documents

Data Sheet – MULTIBASE U20 (2.5 MB)

TENDER SPECIFICATIONS – MULTIBASE U20 (112KB)

DWG – MULTIBASE U20

DXF – MULTIBASE U20 (7.8MB)

Specifications

Independent parking
2 underground level
2 underground spaces
Indoor/Outdoor system
Traversible upper platform

Pit depth 4,250mm or 4,950mm
Pit length 5,300mm or 5,500mm
Pit width anywhere from 2,750mm to 3,150mm
Height anywhere from 3,750mm and up
Usable platform width anywhere from 2,300mm to 2,700mm
Usable platform length 5,000mm or 5,200mm
Weight options 2.0t as standard or 2.6t as optional

No gates required due to key switch operation
Top surface can be freely designed: cassette-type cover, which can be designed to blend in with surroundings on request (e.g. stone layer, lawn)
Separate maintenance shaft is required
Flush to the ground and can be driven on, controlled rainwater drainage
Horizontal access to all parking levels
